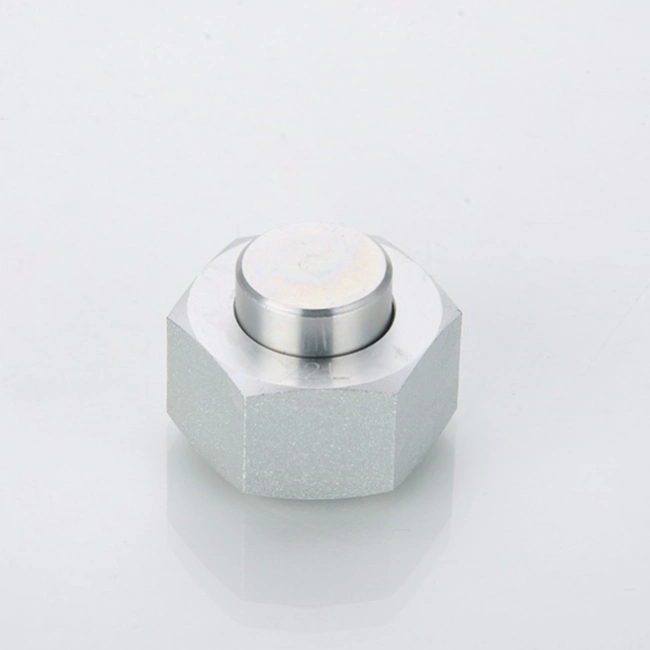

9C FEMALE PLUG

9C FEMALE PLUG
STANDARD: Parker standard, Eaton standard, usually made of carbon steel or 304 316 stainless steel, finished products can be galvanized, zinc-nickel alloy, Cr3, Cr6, these fittings are resistant to impact, corrosion, vibration, abrasion, and have long service life.
9C FEMALE PLUG Hydraulic fittings are suitable for hydraulic and fluid transfer systems in engineering, metallurgy, agriculture, military machinery, oilfield, shipbuilding and other industries, the port of loading can be chosen from Tianjin or Ningbo, and the delivery time is 7-20 days.
For free samples or more information about 9C FEMALE PLUG hydraulic fittings, please add the engineer’s Whatsapp.

Description

DIN 2353-(9C)FEMALE PLUG Size chart

PART NO.	THREAD	TUBE O.D.	DIMENSIONS			MPa
	F	D	L	L1	S2
9C-12	M12X1.5	6	15.5	17.5	14	31.5 Light Series L
9C-14	M14X1.5	8	15.5	18	17
9C-16	M16X1.5	10	16.5	18	19
9C-18	M18X1.5	12	18	19.5	22
9C-22	M22X1.5	15	19.5	20	27
9C-26	M26X1.5	18	20	22	32
9C-30	M30X2	22	21.5	22.5	36	16 Light Series L
9C-36	M36X2	28	22.5	24.5	41
9C-45	M45X2	35	25	29	55
9C-52	M52X2	42	27	31.5	60
9D-14	M14X1.5	6	16	18	17	63 Weight Series S
9D-16	M16X1.5	8	16.5	18.5	19
9D-18	M18X1.5	10	18	20	22
9D-20	M20X1.5	12	18.5	20.5	24
9D-22	M22X1.5	14	19	21.5	27
9D-24	M24X1.5	16	18.5	21.5	30	40 Weight Series S
9D-30	M30X2	20	22.5	25	36
9D-36	M36X2	25	23.5	28.5	46
9D-42	M42X2	30	25.5	32	50
9D-52	M52X2	38	26.5	36	60	31.5Weight SeriesS
