87311-RW SAE Flange 3000 PSI (ISO 12151-3-SAE J516)
Standard: Parker Standard, Eaton Standard, usually made of carbon steel or 304 316 stainless steel, finished product can be zinc plated, zinc-nickel alloy, Cr3, Cr6, these fittings are resistant to impact, corrosion, vibration, abrasion, and have long service life.
87311-RW SAE Flange 3000 PSI (ISO 12151-3-SAE J516) Hydraulic couplings are suitable for hydraulic and fluid transfer systems in engineering, metallurgy, agriculture, military machinery, oilfield, shipping and other industries, the port of loading can be chosen from Tianjin or Ningbo, and the delivery time is 7-20 days.
For free samples of 87311-RW SAE Flange 3000 PSI (ISO 12151-3-SAE J516) Hydraulic Couplings or for more information, please add Engineer’s Whatsapp.

Description

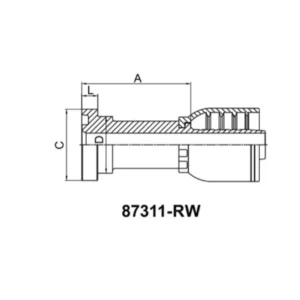

87311-RW Size chart

PART NO.	FLANGE SIZE	HOSE BORE		DIMENSIONS
PART NO.	FLANGE SIZE	DN	DASH	A	C	D	L
87311-08-08RW	1/2″	12	08	46	30.2	24	6.73
87311-12-08RW	3/4″	12	08	47	38.1	317	6.73
87311-12-10RW	3/4″	16	10	48	38.1	31.7	6.73
87311-12-12RW	3/4″	20	12	48	38.1	31.7	6.73
87311-12-16RW	3/4″	25	16	49	38.1	31.7	6.73
87311-16-12RW	1″	20	12	51	44.4	38	8
87311-16-16RW	1″	25	16	52	44.4	38	8
87311-16-20RW	1″	32	20	53	44.4	38	8
87311-20-16RW	1.1/4″	25	16	57	50.8	43	8
87311-20-20RW	1.1/4″	32	20	58	50.8	43	8
87311-24-20RW	1.1/2″	32	20	68	60.3	50	8
87311-24-24RW	1.1/2″	40	24	68	60.3	50	8
87311-32-24RW	2″	40	24	70	71.4	62	9.53
87311-32-32RW	2″	50	32	70	71-4	62	9.53
87311-40-40RW	2.1/2″	64	40	76	84.1	74	9.53

87311-RW SAE Flange 3000 PSI (ISO 12151-3-SAE J516) NOTE:

1. For use with braided hoses.

2. If with spiral hoses,hose fitting series number is 87312-XX-XXRW.
