1CN/1DN

1CN/1DN NPT MALE HYDRAULIC FITTINGS
Standard: Parker standard, Eaton standard, usually made of carbon steel or 304 316 stainless steel, the finished product can be zinc-plated, zinc-nickel alloy, Cr3, Cr6, these fittings are resistant to shock, corrosion, vibration and wear. Long service life.
1CN/1DN NPT MALE hydraulic fittings are suitable for hydraulic and fluid transmission system in engineering, metallurgy, agriculture, military machinery, oil field, shipbuilding and other industries, the port of loading can be chosen from Tianjin or Ningbo, the delivery time is 7-20 days.
For free samples of 1CN/1DN NPT MALE hydraulic couplings or more information, please add engineer’s Whatsapp.

Description

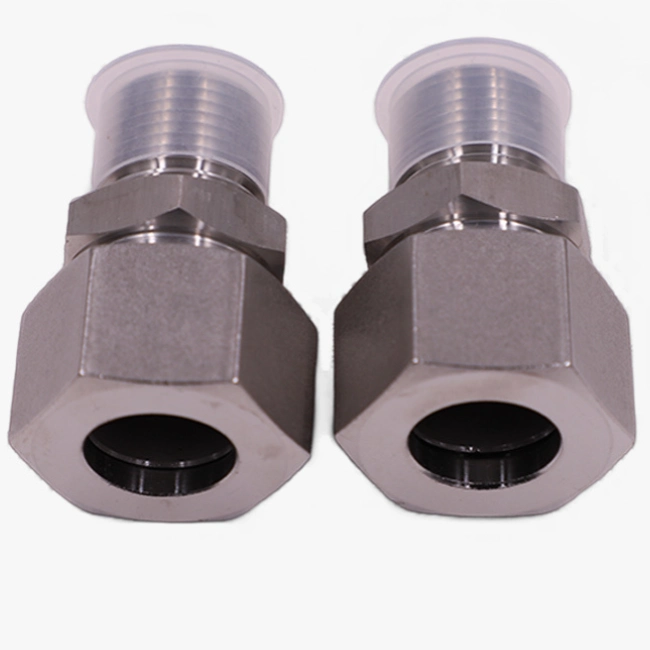

1CN-22-08RN size chart

PART NO.	THREAD		TUBE O.D.	DIMENSIONS				MPa
	E	F	D1	l1	L1	S1	S2
1CN-08-02	M8X1	Z1/8″X27	4	14.4	24.4	11	10	10 特Light series LL
1CN-10-02LL	M10X1	Z1/8″X27	6	12.9	24.4	11	12
1CN-12-02LL	M12X1	Z1/8″X27	8	13.9	25.4	12	14
1CN-12-02	M12X1.5	Z1/8″X27	6	13.4	28.4	12	14	25 Light series L 16 Light series L
1CN-12-04	M12X1.5	Z1/4″X18	6	17.2	32.2	17	14
1CN-14-04	M14X1.5	Z1/4″X18	8	17.2	32.2	14	17
1CN-16-04	M16X1.5	Z1/4″X18	10	18.2	33.2	17	19
1CN-16-06	M16X1.5	Z3/8″X18	10	19.9	53.0	19	19
1CN-18-04	M18X1.5	Z1/4″X18	12	19.2	34.2	19	22
1CN-18-06	M18X1.5	Z3/8″X18	12	19.9	34.9	19	22
1CN-18-08	M18X1.5	Z1/2″X14	12	21.4	36.4	22	22
1CN-22-08	M22X1.5	Z1/2″X14	15	22.4	37.4	24	27
1CN-22-20	M22X1.5	Z1.1/4″X11.5	15	29.8	37.4	46	27
1CN-26-08	M26X1.5	Z1/2″X14	18	22.9	39.4	27	32
1CN-26-12	M26X1.5	Z3/4″X14	18	22.4	38.9	30	32
1CN-30-08	M30X2	Z1/2″X14	22	24.4	40.5	32	36
1CN-30-12	M30X2	Z3/4″X14	22	24.4	40.9	32	36
1CN-36-16	M36X2	Z1″X11.5	28	29.8	46.3	41	41
1CN-36-20	M36X2	Z1.1/4″X11.5	28	31.3	46.3	46	41
1CN-45-20	M45X2	Z1.1/4″X11.5	35	30.3	51.8	46	50
1CN-52-20	M52X2	Z1.1/4″X11.5	42	31.8	55.8	55	60
1CN-52-24	M52X2	Z1.1/2″X11.5	42	32.8	55.8	55	60
1DN-14-04	M14X1.5	Z1/4″X18	6	22.2	37.2	17	17	40 Weight series S
1DN-16-04	M16X1.5	Z1/4″X18	8	22.2	37.2	17	19
1DN-18-04	M18X1.5	Z1/4″X18	10	21.7	38.2	19	22
1DN-18-06	M18X1.5	Z3/8″X18	10	22.4	38.9	19	22
1DN-20-04	M20X1.5	Z1/4″X18	12	23.7	40.2	22	24
1DN-20-06	M20X1.5	Z3/8″X18	12	24.4	40.9	22	24
1DN-20-08	M20X1.5	Z1/2″X14	12	25.9	42.4	22	24
1DN-22-08	M22X1.5	Z1/2″X14	14	27.4	45.4	24	27
1DN-24-08	M24X1.5	Z1/2″X14	16	26.9	45.4	27	30
1DN-30-12	M30X2	Z3/4″X14	20	28.4	49.9	32	36	25 Weight series S
1DN-36-12	M36X2	Z3/4″X14	25	30.9	34.0	41	46
1DN-36-16	M36X2	Z1″X11.5	25	35.3	59.3	41	46
1DN-42-16	M42X2	Z1″X11.5	25	35.8	59.3	46	46
1DN-42-20	M42X2	Z1.1/4″X11.5	30	36.3	62.8	46	50
1DN-52-24	M52X2	Z1.1/2″X11.5	38	39.8	70.8	55	60

1CN/1DN NPT MALE hydraulic couplings dimensional drawings and Note：In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix RN after our partno.,for example 10N-30-12RN.
