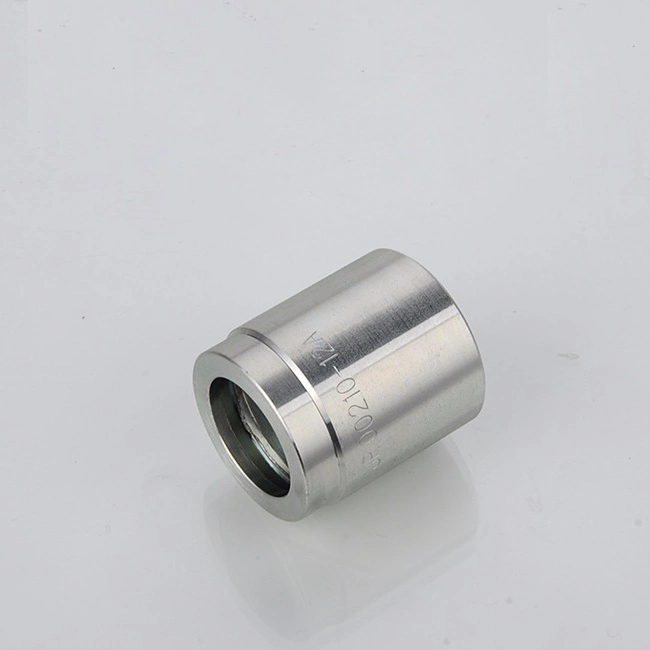

SAE 100R2AT / DIN20022 2SN Sleeves for Hoses
Standard: Parker standard, Eaton standard, usually made of carbon steel or 304 316 stainless steel, the finished product can be galvanized, zinc-nickel alloy, Cr3, Cr6, these fittings are resistant to impact, corrosion, vibration, abrasion, and have a long service life.
Sleeves for SAE 100R2AT / DIN20022 2SN hose are suitable for hydraulic and fluid transfer systems in engineering, metallurgy, agriculture, military machinery, oil field, shipping and other industries, the port of loading can be chosen from Tianjin or Ningbo, and the delivery time is 7-20 days.
For free samples of Sleeves for SAE 100R2AT / DIN20022 2SN Hose or for more information, please add Engineer’s Whatsapp.

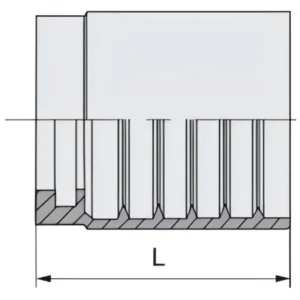

00210-A Size chart.
| PART NO. | HOSE BORE | DIMENSIONS | |
| DN | DASH | L | |
| 00210-03 | 5 | 03 | 24.5 |
| 00210-04 | 6 | 04 | 30 |
| 00210-05 | 8 | 05 | 31 |
| 00210-06 | 10 | 06 | 32 |
| 00210-08 | 12 | 08 | 34 |
| 00210-10 | 16 | 10 | 37 |
| 00210-12 | 20 | 12 | 43 |
| 00210-16 | 25 | 16 | 50 |
| 00210-20 | 32 | 20 | 59 |
| 00210-24 | 40 | 24 | 74 |
| 00210-32 | 50 | 32 | 78 |
