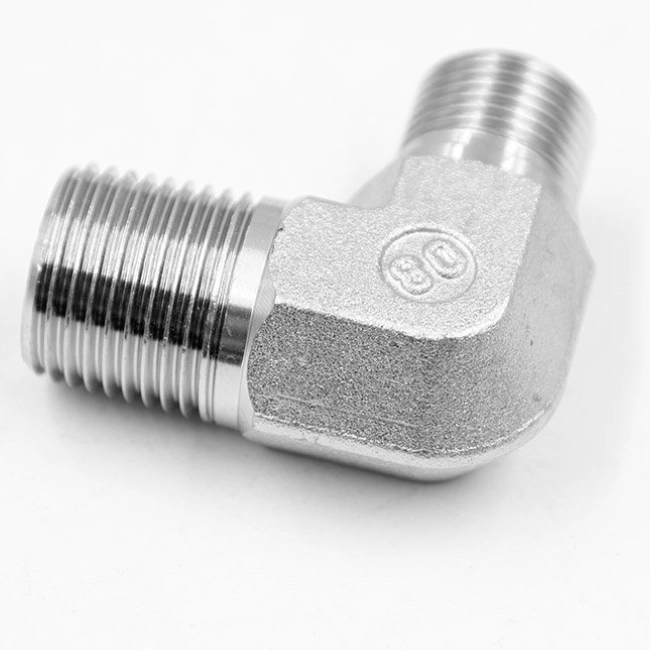

90 degree hydraulic elbow fittings 1/2 male x 5/8 female are hydraulic elbow fittings capable of connecting two different thread sizes to solve the problem of reducer adapters and directional adjustments in hydraulic piping systems. Below are the types of products that can be purchased to solve this problem and the recommended solutions:
90 degree hydraulic elbow fittings 1/2 male x 5/8 female hydraulic fittings
Reducing thread 90 degrees hydraulic elbow (direct target product, the user is looking for the product should be this, at the same time in order to prevent users from memory bias, but also recommended another product.)
Product Description:
Designed for the connection of 1/2 inch male thread and 5/8 inch female thread 90 degree elbow, the material to be adapted to the working pressure of the hydraulic system and environmental requirements.
Two types and sizes are commonly used:
First: 90 ° elbow, 1/2 inch BSPP male x 5/8 inch JIC female swivel 9061 series
Material: zinc alloy (conventional pressure resistance), copper nickel-plated (corrosion prevention), stainless steel (high pressure and high temperature) carbon steel .
Pressure Rating: To be selected based on system requirements.
Second: 5/8“ JIC male x 1/2” JIC female 90 degree swivel nut elbow/fitting hydraulic corner fitting 6500 series
Material: zinc alloy (conventional pressure resistance), copper nickel-plated (corrosion resistance), stainless steel (high pressure and high temperature) carbon steel .
Pressure level: to be selected according to system requirements.
(If you need to know more and more detailed content. You can click on the page whatsapp for free consultation)
Combined adapter program (alternative program)
If a direct fit reducer elbow is not available, the user may require a combination of the following products:
Standard 90 degree elbow + Reducer
Program Description:
Use a 1/2 in. male x 1/2 in. female 90 degree elbow with a 1/2 in. male to 5/8 in. female reducer.
Benefits: Flexibility to adapt to existing standard parts, reducing costs.
Recommended products:
Zinc alloy reducer fittings: support the conversion of imperial threads, bulk purchase of lower unit price.
Stainless Steel Adapter Sleeves: High-pressure resistance and tight sealing.
Adjustable hydraulic hose elbow
Program Description:
Uses a 90-degree hose elbow with a 1/2-inch male connector and a 5/8-inch female quick-connect fitting on the end.
Benefits: Ideal for situations where space is limited or frequent disassembly is required.
Recommended products:
Flexible rubber elbow (Xinchanglong brand): oil resistance, aging resistance, suitable for dynamic piping.
Quick-change coupling assemblies (e.g. Stauff brand): offer a variety of threaded adapter options.
Non-standard customized elbows (in-depth requirements)
If the user needs to exactly match the exact specifications of 1/2 male × 5/8 female thread, it is necessary to provide the supplier with parameters for customization:
Customization Requirements:
Specify thread type (NPT/G/BSPP), pitch, and tolerance class.
Specify material and surface treatment (e.g., zinc plating, Dacromet coating).
The user’s final choice should be based on system pressure, environmental corrosion, budget and delivery time.
